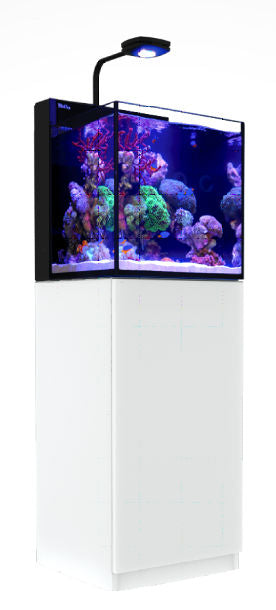

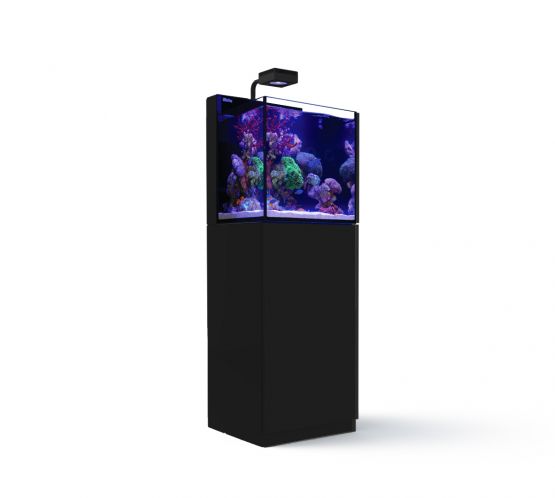

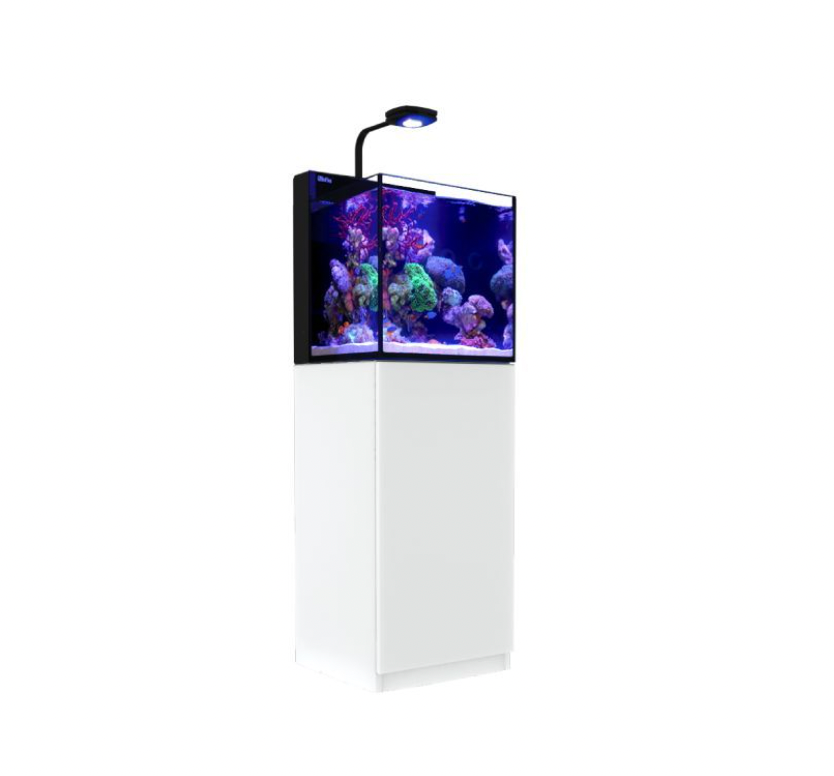

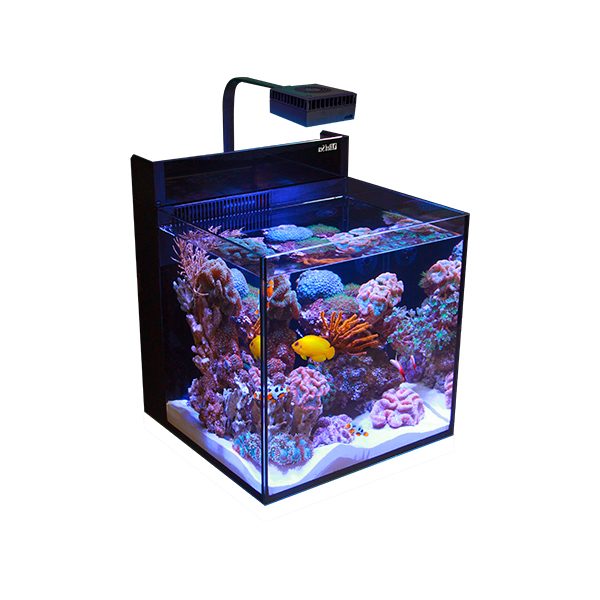

The MAX® NANO combines a contemporary, rimless design with state of the art technology.
This fully-featured REEF-SPEC® system provides everything necessary in order to enable you to enjoy the beauty and diversity of your own piece of thriving coral reef, rather than worrying about component selection, suitability and compatibility.
The all new MAX® NANO features the very latest in reef-keeping technology including Red Sea'™s all new ReefLED 50 lighting, REEF-SPEC® filtration and circulation systems, an Automatic Top-Off unit and an easy access power centre.
Reef safe ReefLED 50 lighting

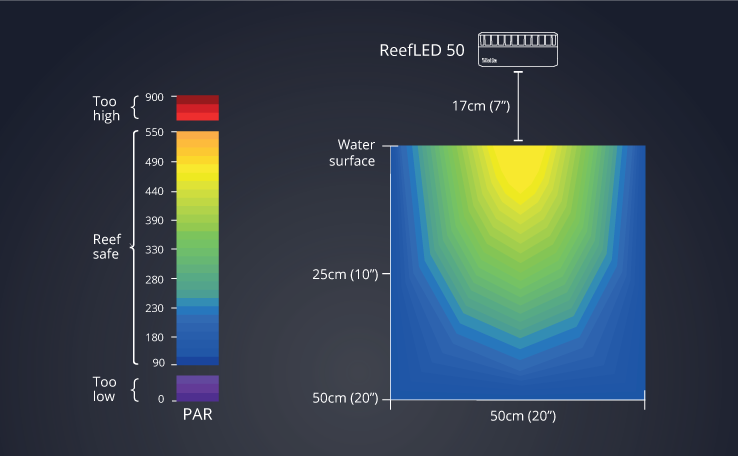

The MAX NANO incorporates the all-new Red Sea ReefLED 50 lights which are designed to ensure optimal coral growth and maximum rendition of their vibrant colours.
At the heart of the unit is a compact Led array that provides a reef-safe range of REEF-SPEC light through a single REEF-SPEC Blue (23,000 Kelvin) channel that consists of an optimum combination of ultraviolet, violet and blue LEDs and an 8,000 Kelvin white channel. In addition, it has a separate dedicated 3W Moonlight channel to provide the low levels of light for reef-safe nighttime viewing.
The ReefLED includes a single optical-glass, hollow lens that creates a homogenous light giving a dramatic coral coloration and a gentle shimmer throughout the aquarium.
Red Sea MAX® NANO Features
|
Specification
|
Description
|
MAX® NANO
|
|
System water volume
|
Combined aquarium and sump
|
75 L
(20 gal)
|
|
Aquarium volume
|
Display tank
|
62 L
(16.5gal) |
|
Rear Sump volume
|
Rear sump
|
13 L
( 3.5 gal) |
|
Aquarium glass thickness
|
Ultra-clear front and side panels
|
8 mm
(5/16') |
|
Surface skimmer
|
Removable Surface Skimmer |
ˆš
|
| LED Lighting system |
ReefLED 50
|
1 unit
|
| Lighting control | Wi-Fi based system compatible with all iOS, Android, and Wi-Fi enabled Mac or PC. |
ˆš
|
| Total circulation lph (gph) | Hidden circulation pump |
1 x 950 (240gph)
|
|

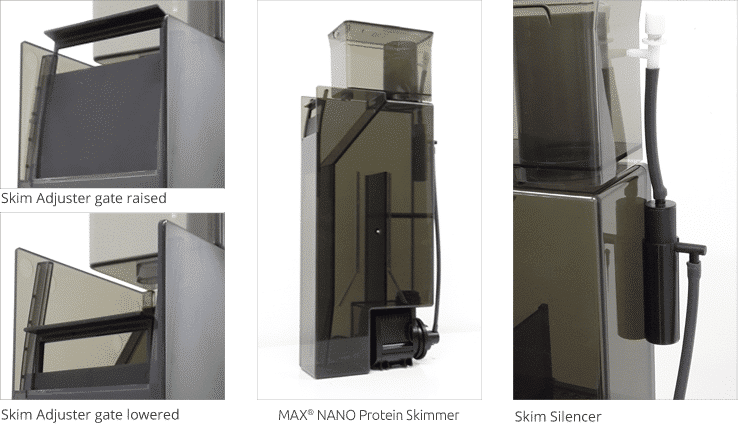

Protein skimmer
|
Water flow |
180 Lph (46gph)
|
| Air flow |
60 Lph (15gph)
|
|
|

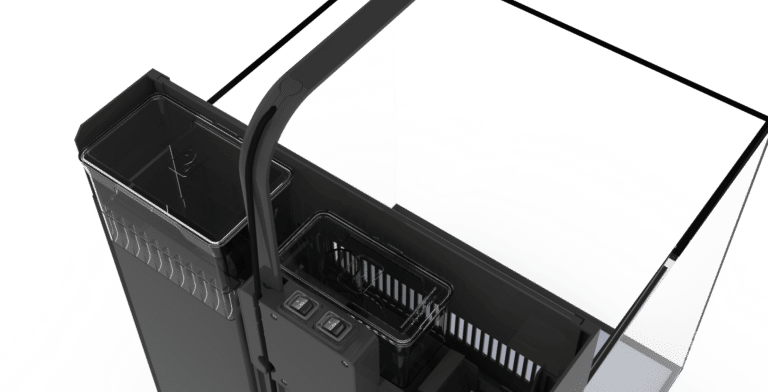

Integrated power center
|
Individual on/off switches for circulation and skimmer pumps |
ˆš
|
| Mechanical filtration | Standard 225 Micron filter bags (optional 100 micron bags) |
1
|
| Filtration media | Red Sea REEF-SPEC® Carbon |
100g
(3.5 oz) |
| Automatic Top-Off | ATO with 1.5L freshwater reservoir |
ˆš
|
| Cabinet (Optional) | Marine Spec cabinet with weatherproof doors |
ˆš
|
|
Length
|
Display tank |
45 cm
(18'³) |
|
Width
|
Display tank |
45 cm (18'³) |
|
Height
|
Display tank |
45 cm (18'³) |
| Total system height (excluding LED light unit) |
132 cm (52'³) |
