Dual Heating and Cooling Temperature Controller

The Dual Digital Temperature Controller is designed to allow precise control of the temperature in an aquarium and has 2 modes which allow control of both heating and cooling at the same time.

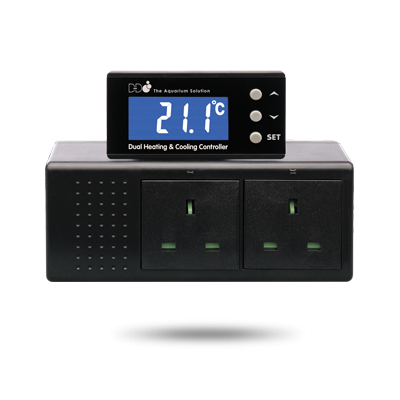

• Double mains power socket '“ one power socket for heater control and the other for fan/chiller control.

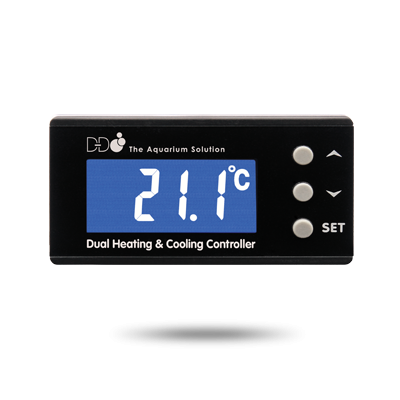

• Display with temperature sensor '“ used to set and display temperature and alarms and measure temperature.
• The plastic coated temperature sensor is waterproof and suitable for use in a marine aquarium.

• Plug and play - no wiring required.
• Heating/cooling can be set to within 0.3 deg C of target temperature e.g. Control Range of 24.7 - 25.3 deg C (with set temp of 25 deg C).
• Audible and Visual Alarm Function e.g alarm sounds if temp below 24 deg C or above 26 deg C (with alarm set to 1 deg C).
• 2m long plastic coated temperature sensor with mounting suction cup.
• Heating Control (resistive load, such as heater) max 1600W.
• Cooling Control (inductive load, such as a chiller) max 600W.
• Display: Back lit blue LCD '“ permanently lit.
• Power off memory function

Size:

• Display panel size: 95mm x 50mm x 15mm
• Control socket size: 160mm x 70mm x 45mm

Technical Parameters:

• Temperature control range: 16 - 40 deg C
• Temperature differential setting range 0.3 '“ 16.0 deg C
• Alarm function range: 0.5 '“ 5 deg C of set point temperature
• Resolution: 0.1 deg C
• Accuracy: ±1 deg C (30 - 50 deg C)
• Power supply: 220VAC±10%, 50/60Hz
• Power consumption: ‰¤3W
